pCON Planner and lighting Layouts 2025
The free pCON Planner STD 8.11 for (future) lighting planners
________

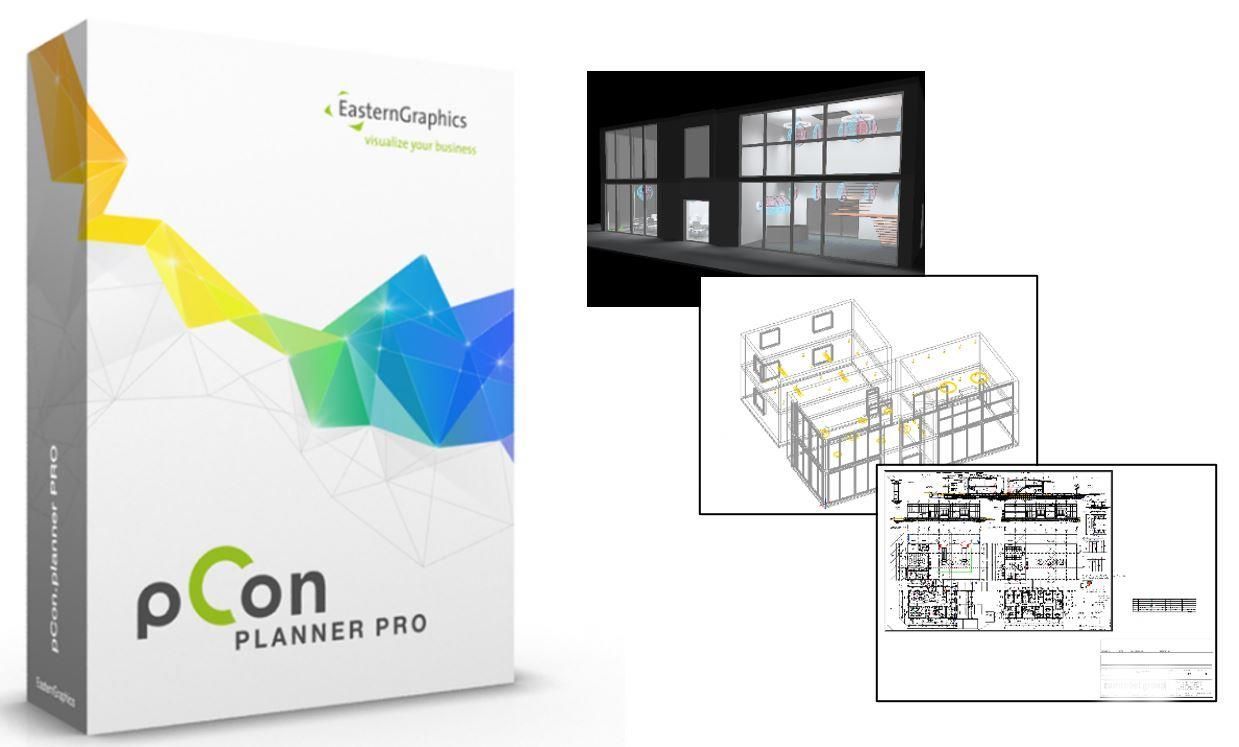

This CAD freeware from the German software company Eastern Graphics enables you to reintegrate your lighting plans created with DIALUX or RELUX into the customer's floor plan. In addition, roll-out plans, eg in the retail sector, can be created in a similar way to working with autoCAD (Autodesk).
_______
This CAD freeware from the German software company Eastern Graphics allows you to integrate your lighting plans created with DIALUX or RELUX into the customer's floor plan. Rollout plans, such as those in the retail sector, can also be created in a similar way to working with AutoCAD (Autodesk). Powerful rendering options round out the tool.
- Free tool that can be used commercially.
- Load and save CAD models/plans in various formats (DWG, 3DS, IFC, SKP, DXF).
- Create scaled plans/floor plans with an individualized plan header and output them as a DWG or PDF file.
- Prepare DWG files exported from DIALUX or RELUX for the customer in the optimal look & feel.
- Create roll-out plans for implementation planning.
- Integrate images into DWG files.
- Drawing rooms and planning interior design.
- Create photorealistic renderings.
pCON Planner PRO:even more functions - especially in the layout area and additional ReCad interface for importing IFC files into RELUX.
